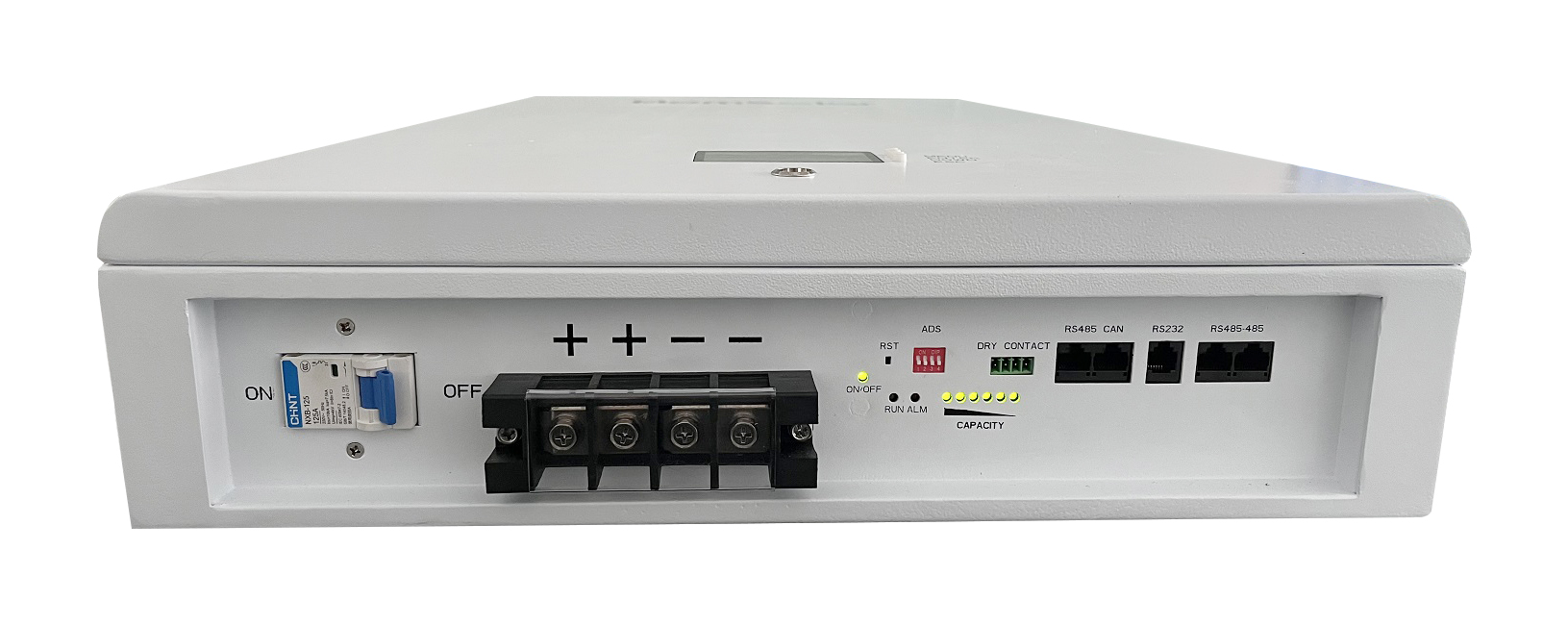

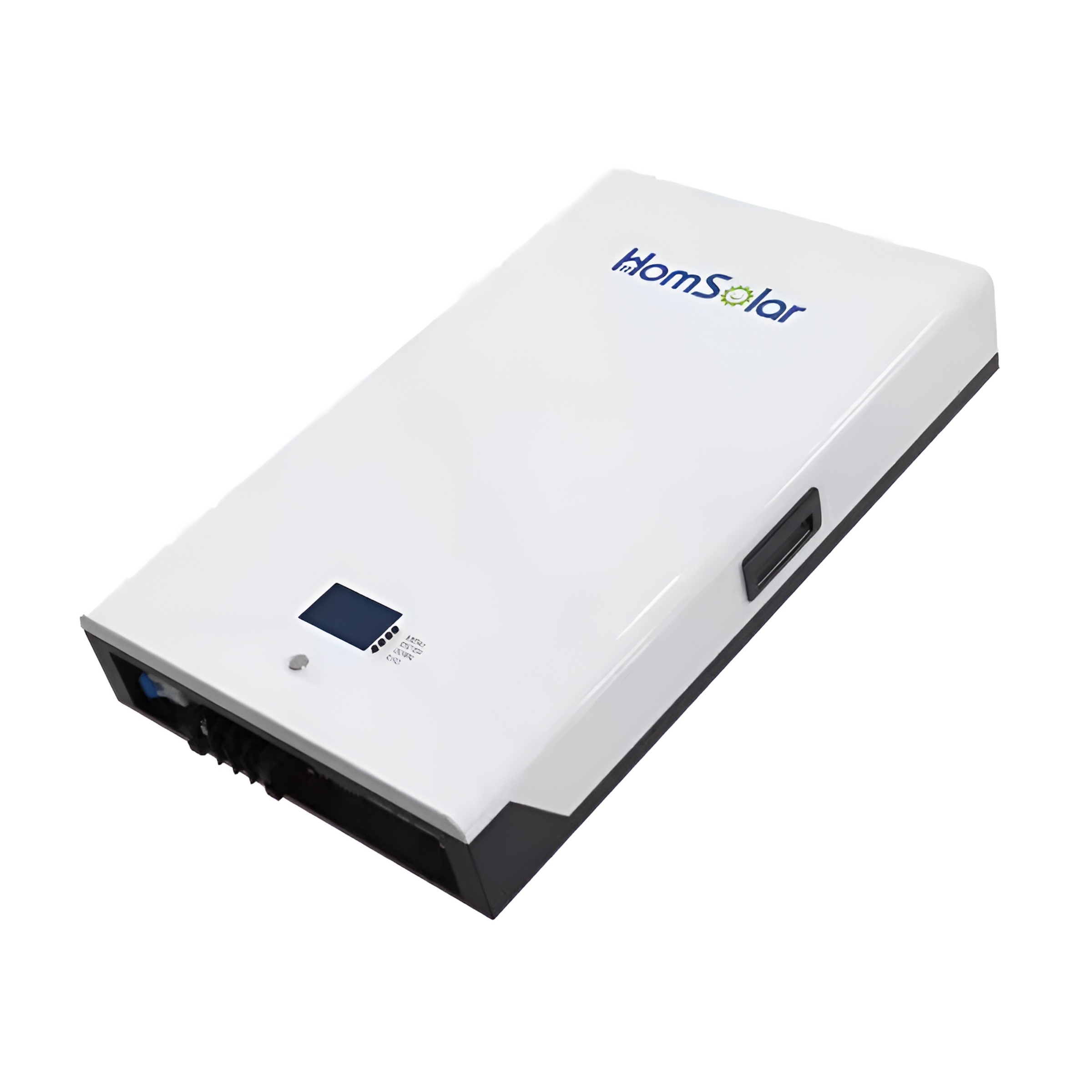

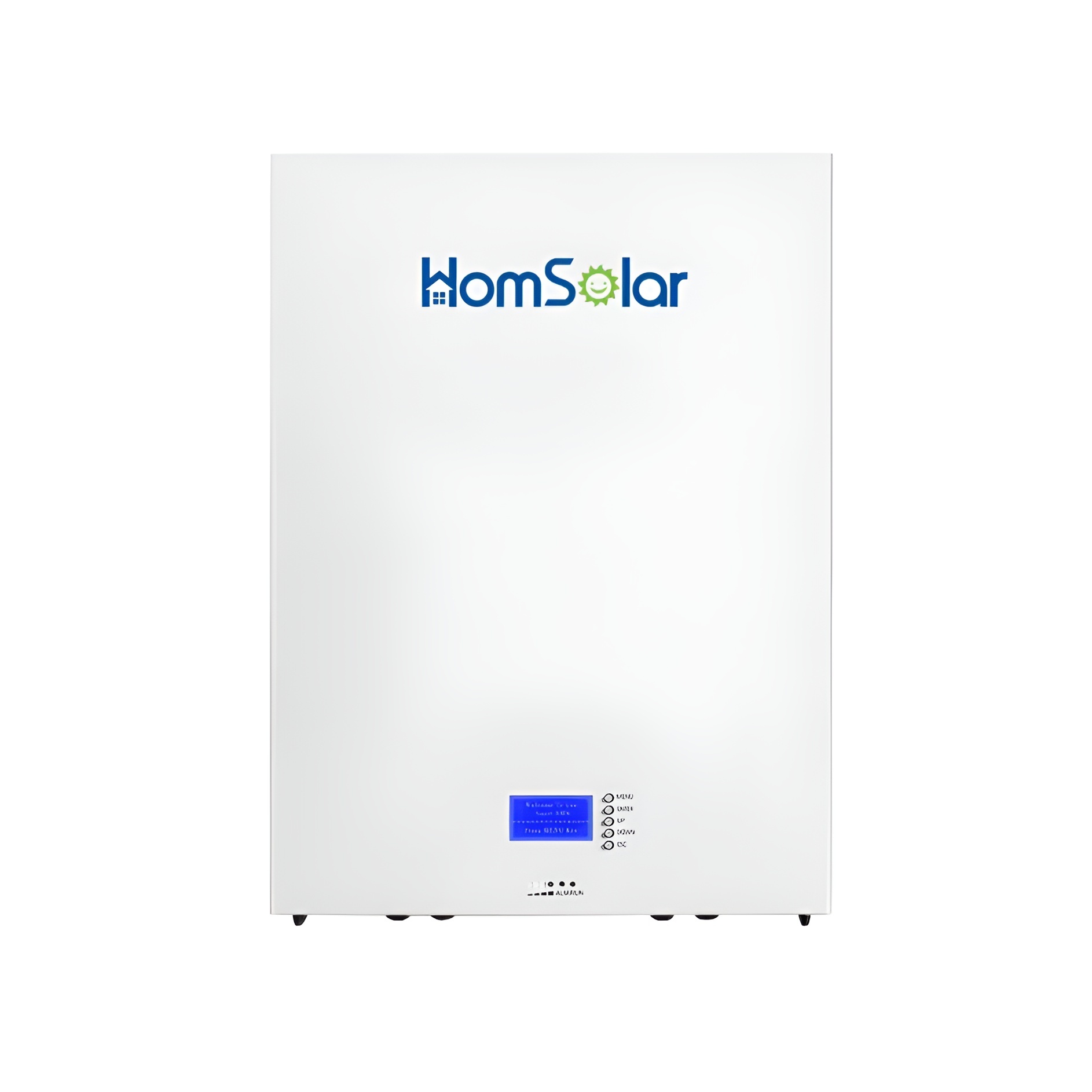

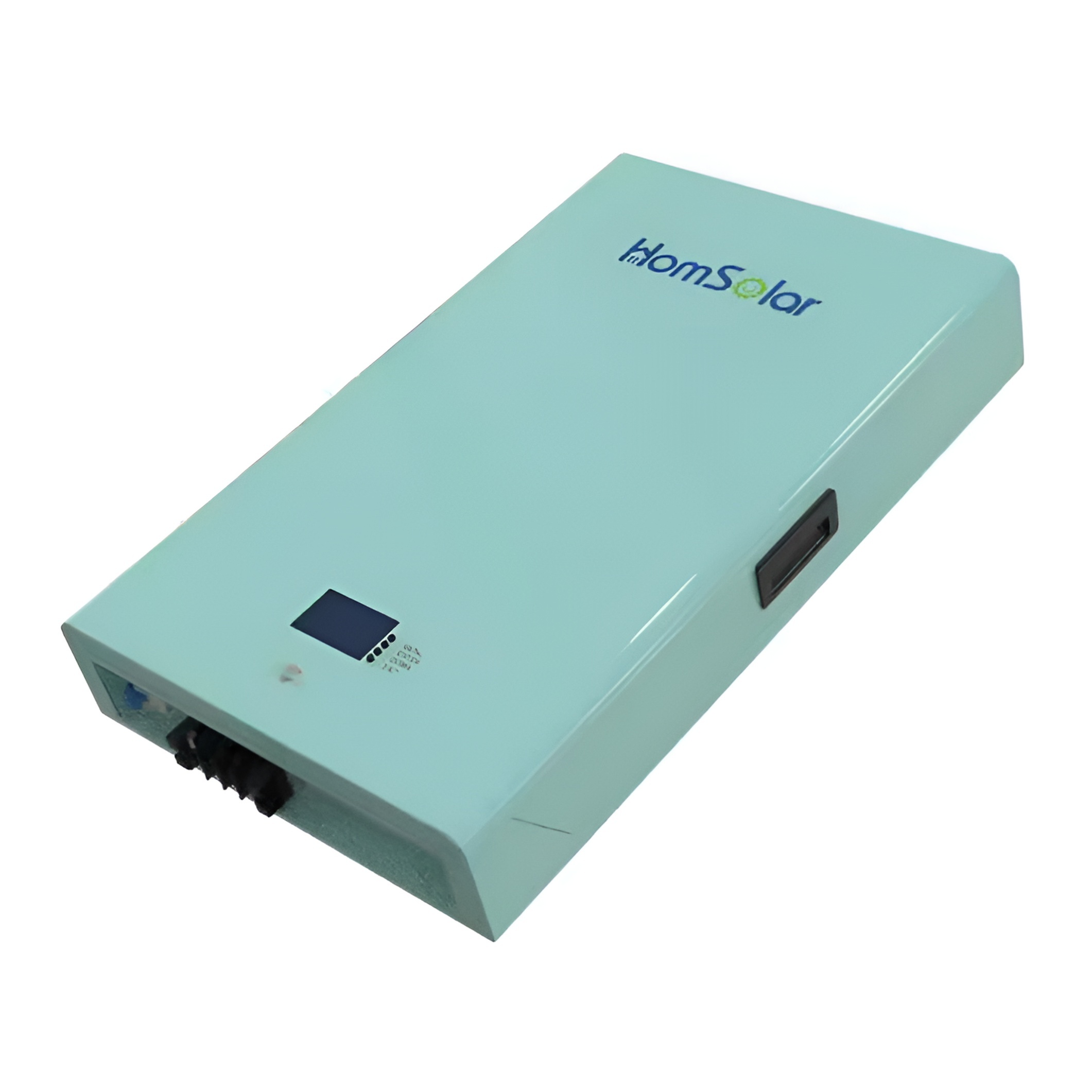

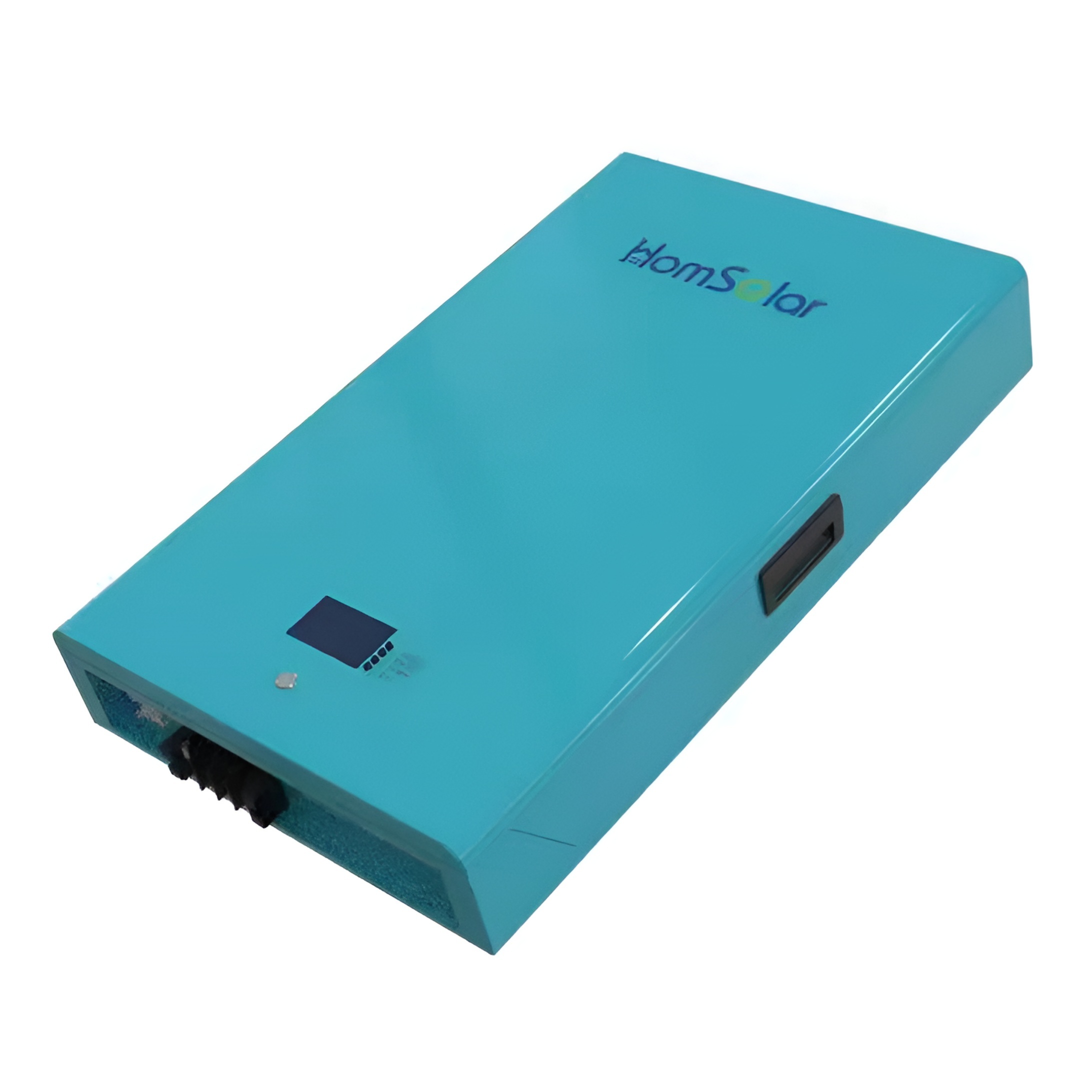

HOM-ESS48100PW 48V 100Ah Wall-mounted Energy Storage System
| Model | HOM-ESS48100PW |
| Battery Type | Wall-mounted Energy Storage System |
| Customizable/OEM/ODM | Available |
| Customised Capacity/Voltage | Support |
| Cells Type | Grade A, Brand New LiFePO4 Battery Cells |
| Nominal Voltage | DC 51.2V |
| Rated Capacity | 100Ah (0.2C/25°C) |
| Energy | 5120Wh |
| Operating Voltage Range | DC 51.2V (40-58.4V) |
| Charging Cut-off Voltage | DC 58.4V |
| Discharge Cut-off Voltage | DC 40V±2V |
| Charging Current | 50A Max |
| Discharge Current | 100A Max |
| Cycle life | ≥6000 @80%DOD, 0.5C/0.5C, 25℃ |
| Shell | Metal/Customized |
| Terminal Stud | Customized |
| Alarm & Potection | Overvoltage, Undervoltage, Overcurrent, Short-circuit, Overheating |
| Cooling Mode | Natural Cooling |
| Altitude | ≤4000m |
| Humidity | 15%~85% |
| Charge Temperature | 0°C~50°C |
| Dischage Temperature | -20°C~60°C |
| Storage Temperature | -20°C~50°C |
| Dimensions (L*W*H ) | 685*485*220mm |
| Weight | About 45kg |
| Display | LCD Screen |
| Warranty | 5 Years |
| Design Lifespan | 20 Years |
| Grid Connection (Split) | Off-grid, On-grid, Hybrid |
