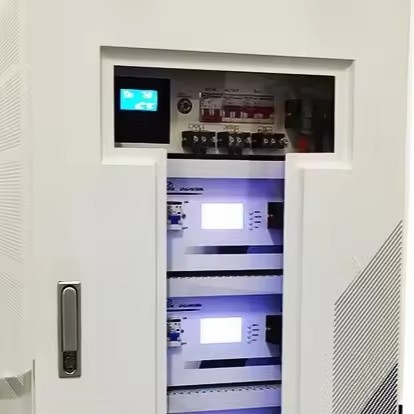

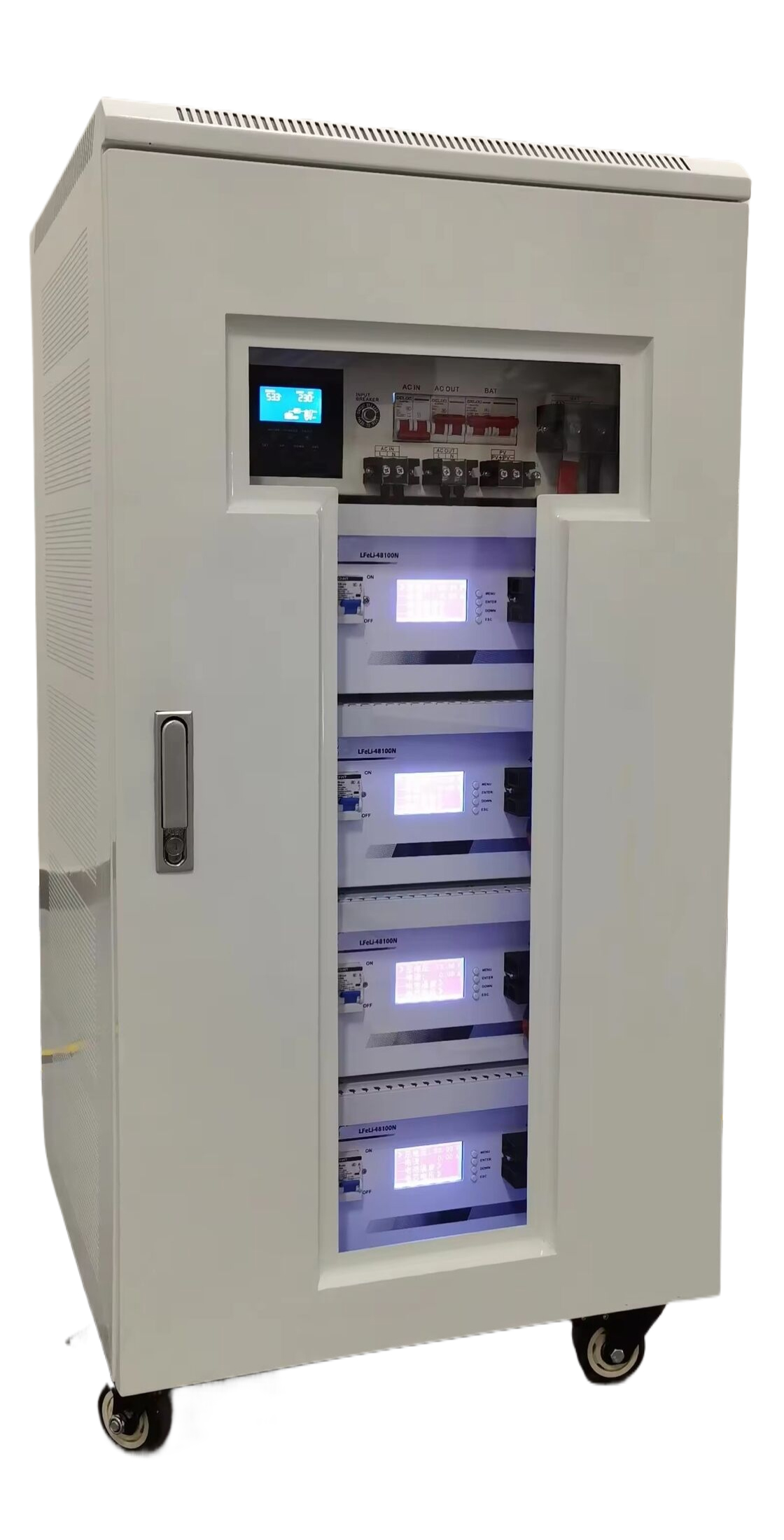

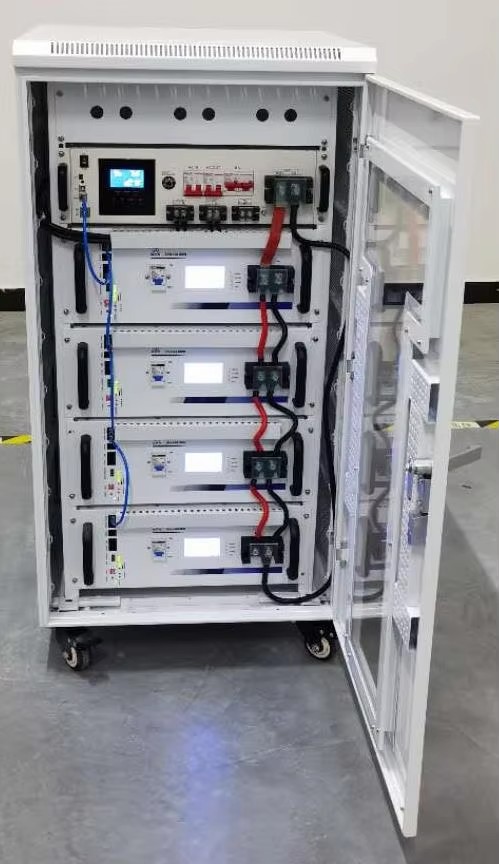

HOM-ESS48400R-W 48V 400Ah Rack-mounted Energy Storage System
| Type No. | HOM-ESS48400R-W |
| LFP Module Parameters | |
| Module Type | DC51.2V 100Ah |
| Module Configuration | 16S1P |
| Battery Type | LiFePO4 |
| System Parameters | |
| Number of Modules | 4 in parallel |
| System Voltage | DC 51.2V |
| System Capacity | 400Ah |
| System Power | 20.48kWh |
| Rated charge current | 100A |
| Maximum charging current | 400A |
| Rated discharge current | 300A |
| Charging temperature | 0-55℃ |
| Working temperature | -20~60℃ |
| Operating temperature | 15-25℃ |
| Type of cooling | Natural cooling |
| Relative humidity | 5%-95% |
| Operating altitude | ≤2000M |
| Cycle life | ≥6000 @80%DOD, 0.5C/0.5C, 25℃ |
| Communication mode | CAN/RS485/RS232 |
| Protection | Overtemperature, overcurrent, short circuit, overcharge, overdischarge, etc |
| Display | LCD touch-screen |
| Warranty | 5 years |
| Design service life | ≥20 years |
| Certificate | UN38.3/UL1973/CE/IEC62619 |
| Inverter power | 5000W hybrid inverter |
| Controller | MPPT |
| Input | 170-280Vac/PV 60-145Vdc |
| Rated Output Voltage | 220Vac |
| Protection | Built-in Smart BMS |
